N-TYPE BIFACIAL DUAL GLASS
590W Module
72HL4-BDV
from $76.5 / pcs
In stock. Exact quantity on request.
Location: Mersin, Turkey.
Origin: China.
Electrical (STC)
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 590 Wp |
| Vmp | 44.17 V |
| Imp | 13.36 A |
| Voc | 52.90 V |
| Isc | 14.07 A |
| Module Efficiency | 22.84 % |
| Power Tolerance | 0 ~ +3 % |
Mechanical
| Parameter | Value |
|---|---|
| Cell Type | N-type Mono-crystalline |
| No. of Cells | 144 (72×2) |
| Dimensions | 2278 × 1134 × 30 mm |
| Weight | 31.0 kg |
| Front / Back Glass | 2.0 mm AR / 2.0 mm heat strengthened |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 |
| Output Cables | 4.0 mm², +400 / -200 mm |
Application
| Parameter | Value |
|---|---|
| Operating Temperature | -40 °C ~ +85 °C |
| Maximum System Voltage | 1500 VDC (IEC) |
| Max Series Fuse | 30 A |
| Bifacial Factor | 80 ± 5 % |
| Temp. Coeff. Pmax | -0.29 %/°C |
Packaging
| Parameter | Value |
|---|---|
| Pallet | 36 pcs |
| Stack (2 pallets) | 72 pcs |
| 40'HQ Container | 720 pcs |
Warranty & Performance
| Parameter | Value |
|---|---|
| Product Warranty | 12 years |
| Linear Power Warranty | 30 years |
| First Year Degradation | 1 % |
| Annual Degradation (years 2–30) | 0.40 % |
| Mechanical Load (front) | 5400 Pa |
| Mechanical Load (rear) | 2400 Pa |

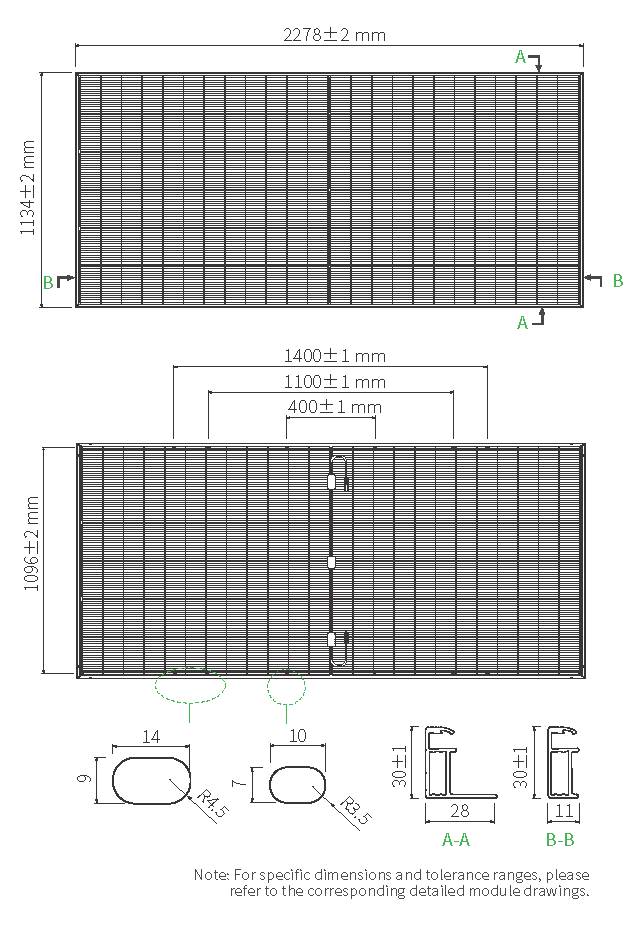

Engineering Drawings

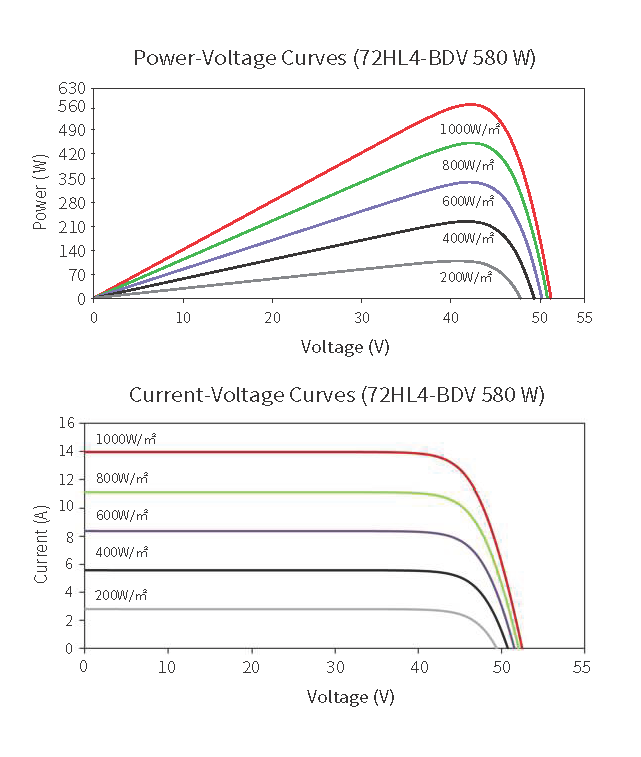

Electrical Performance
